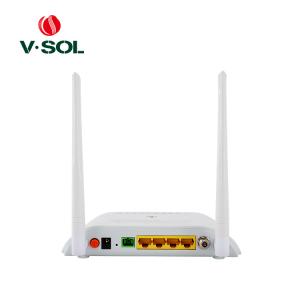

V-SOL V2804RGWT GPON ONU 1GE 3FE WiFi4 CATV GPON ONT With Realtek Chipset

Product Categories
Guangzhou V-Solution Telecommunication Technology Co., Ltd.
Contact Now

V-SOL V2804RGWT GPON ONU 1GE 3FE WiFi4 CATV GPON ONT With Realtek Chipset

  • 1
  • 2
  • 3

Brand Name : V-SOL

Model Number : V2804RGWT

Place of Origin : Guangdong, China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 1000 pcs/day

Delivery Time : 3-5 days

Packaging Details : Carton

Product type : 1GE+3FE+WiFi+CATV ONU

PON Interface : EPON PX20+ and GPON Class B+

LAN Ports : 4 auto adaptive Ethernet interfaces

CATV : RF, optical power : +2~-18dBm

2.4G WiFi : Operating frequency: 2.400-2.4835GHz

Net weight : 0.29kg

Contact Now

GPON ONT 1GE+3FE+WiFi+CATV ONU Home Gateway Stable Chipset Realtek HGU

Product Description

V2804RGWT is based on mature and stable, cost-effective GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.

V2804RGWT G/EPON 1GE+3FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an EPON/GPON Gigabit Ethernet products.

V-SOL V2804RGWT GPON ONU 1GE 3FE WiFi4 CATV GPON ONT With Realtek Chipset

Application

V-SOL V2804RGWT GPON ONU 1GE 3FE WiFi4 CATV GPON ONT With Realtek Chipset

Specifications

V-SOL V2804RGWT GPON ONU 1GE 3FE WiFi4 CATV GPON ONT With Realtek Chipset

LED Mark Status Description
Power PWR On Device is powered up.
Off Device is powered down.
Optical Signal Loss LOS Blink Device does not receive optical signals.
Off Device has received optical signal.
Registration REG On Device is registered to the PON system.
Off Device is not registered to the PON system.
Blink Device is registering.
Interface

FE1~FE3,

GE

 On Port is connected properly.
Off Port connection exception or not connected.
Blink Port is sending or/and receiving data.
Wireless WiFi On WiFi turned on.
Off Device is power off or WiFi turned off.
Blink WiFi data transmission.
WAN WAN On WAN is up
Off WAN is down
WPS WPS On WPS client is connected. ( LED turn off after 5 minutes of successful connection)
Off

Does not use WPS or WPS client is connected.

( LED turn off after 5 minutes of successful connection)
Blink WPS client is connecting.
CATV CATV On 1550nm wavelength power of input is in normal range.
Off 1550nm wavelength power of input is too low or no input.
Blink 1550nm wavelength power of input is too high.

Features

Item Function
PON mode Dual Mode , Can access EPON/GPON mainstream OLTs
Software mode Bridging and Routing Mode.
Layer2 802.1D&802.1ad bridge,802.1p Cos,802.1Q VLAN.
Layer3 IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT , DMZ ,DDNS.
Multicast IGMPv1/v2/v3 , IGMP snooping.
Security Flow & Storm control, Loop Detection.
CATV Support CATV management.
WiFi

IEEE802.11b/g/n (TX power:17dBm/16dBm/15dBm),Up to 300Mbps

Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES).
Firewall Filtering Based on ACL/MAC/URL.
O&M WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of VSOL OLT.
